| Model Number : | XYA501-505 48v lifepo4 battery |
| Brand Name : | LI Solar |
| Price : | Negotiation |

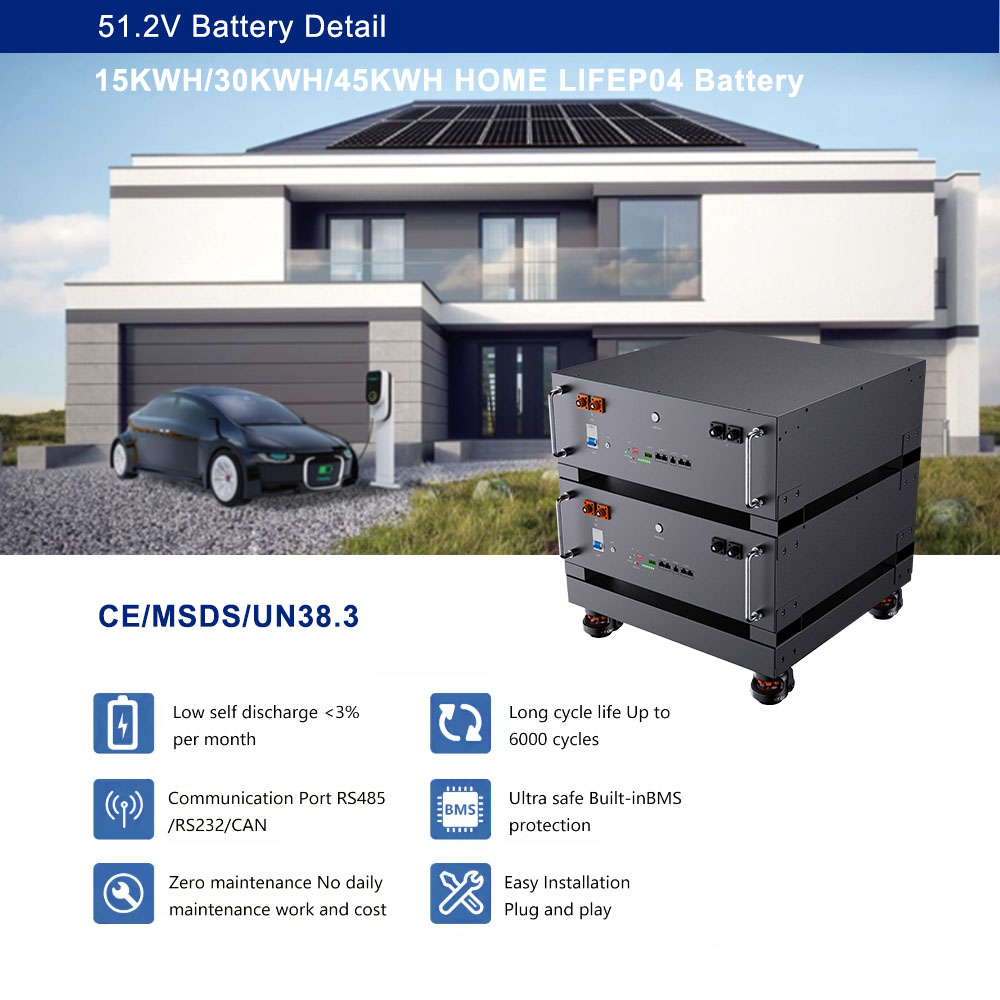

Rack-Mounted LiFePO4 Battery Systems for Industrial & Commercial Use
Maximize efficiency and scalability with our Rack-Mounted LiFePO4 (Lithium Iron Phosphate) battery systems, engineered for the demanding energy storage needs of the commercial and industrial sectors. These advanced systems offer high energy density, enhanced safety, and long-lasting performance, making them ideal for a wide range of energy applications.
Product model | XYA501 | XYA502 | XYA503 | XY504XY | XYA505 | ||||
Nominal voltage | 51.2V | ||||||||
Energy | 5.12Kwh | 10.24Kwh | 15.36Kwh | 20.48Kwh | 25.60Kwh | ||||
Charging limit voltage | 58.4V maximum | ||||||||
Working voltage | 44.8~58.4V | ||||||||
Standard charging current | 40A | ||||||||
Standard charging current | 100A | ||||||||
Discharge cut-off voltage | 43.2V | ||||||||
Standard discharge current | 40A | ||||||||
Maximum discharge current | 100A | ||||||||
Cell model | LFP 3.2V 50Ah | ||||||||
Material of the shell | Cold-rolled steel plate | ||||||||
Protection leve | IP51 | ||||||||
Cooling method | Natural cooling | ||||||||
External dimensions | 510*510*177±2mm | ||||||||
Battery weight | ≈45Kg | ≈90Kg | ≈135Kg | ≈180Kg | ≈225Kg | ||||
Working temperature | Charge:0C~45°C,At10%-90%RH,Discharge:-20°C-60℃ | ||||||||
Storage temperature | 15°C~25℃ 9 months ; At50%-60%SOC 0°℃~35°℃:6 months ; | ||||||||
Storage humidity range | -20°℃~45°℃:1 month | ||||||||
|
|
